Friday 6 March 2015

Conditional colors to Fields in Jasper Studio 6.0.1 - Example sceenshot and JRXML

1) Style
2) Condition-1
3) Condition-2
4) On the Text Field
5) Output
6) JRXML

1) Style

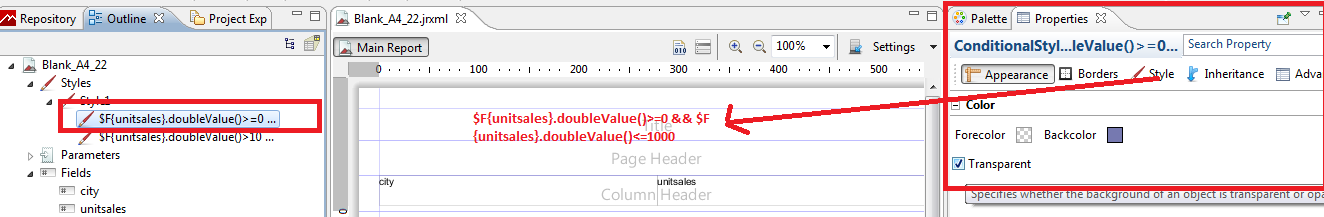

2) Condition-1
3) Condition-2
4)  On the Text Field

5) Output
6) JRXML

<?xml version="1.0" encoding="UTF-8"?>
<!-- Created with Jaspersoft Studio version 6.0.0.final using JasperReports Library version 6.0.0  -->
<!-- 2015-03-06T13:13:06 -->
<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="Blank_A4_22" pageWidth="595" pageHeight="842" columnWidth="555" leftMargin="20" rightMargin="20" topMargin="20" bottomMargin="20" uuid="ab524a87-197a-4dac-b294-ba81b7cb1409">
    <property name="com.jaspersoft.studio.data.defaultdataadapter" value="foodmart"/>
    <style name="Style1">
        <conditionalStyle>
            <conditionExpression><![CDATA[$F{unitsales}.doubleValue()>=0 && $F{unitsales}.doubleValue()<=1000]]></conditionExpression>
            <style backcolor="#7679B0"/>
        </conditionalStyle>
        <conditionalStyle>
            <conditionExpression><![CDATA[$F{unitsales}.doubleValue()>1000 && $F{unitsales}.doubleValue()<=3000]]></conditionExpression>
            <style backcolor="#EBEDA4"/>
        </conditionalStyle>
    </style>
    <queryString>
        <![CDATA[SELECT c.city, SUM(unit_sales) UnitSales FROM customer c, sales_fact_1997 sf7 WHERE
c.customer_id=sf7.customer_id GROUP BY c.city]]>
    </queryString>
    <field name="city" class="java.lang.String"/>
    <field name="unitsales" class="java.math.BigDecimal"/>
    <background>
        <band splitType="Stretch"/>
    </background>
    <title>
        <band height="32" splitType="Stretch"/>
    </title>
    <pageHeader>
        <band height="35" splitType="Stretch"/>
    </pageHeader>
    <columnHeader>
        <band height="36" splitType="Stretch">
            <staticText>
                <reportElement x="0" y="0" width="278" height="30" uuid="621ecd38-7026-4d55-9afe-6a1fa2c37613"/>
                <text><![CDATA[city]]></text>
            </staticText>
            <staticText>
                <reportElement x="278" y="0" width="277" height="30" uuid="2c237fac-2804-4031-a064-a666b37fd164"/>
                <text><![CDATA[unitsales]]></text>
            </staticText>
        </band>
    </columnHeader>
    <detail>
        <band height="46" splitType="Stretch">
            <textField>
                <reportElement x="0" y="13" width="278" height="30" uuid="a448fd0f-d6b7-45ef-8915-3250c06d178a"/>
                <textFieldExpression><![CDATA[$F{city}]]></textFieldExpression>
            </textField>
            <textField>
                <reportElement style="Style1" mode="Opaque" x="278" y="13" width="277" height="30" uuid="2040c97e-9bd0-4c05-b515-a06f60b315af"/>
                <textFieldExpression><![CDATA[$F{unitsales}]]></textFieldExpression>
            </textField>
        </band>
    </detail>
    <columnFooter>
        <band height="45" splitType="Stretch"/>
    </columnFooter>
    <pageFooter>
        <band height="54" splitType="Stretch"/>
    </pageFooter>
    <summary>
        <band height="42" splitType="Stretch"/>
    </summary>
</jasperReport>
