JFree Statcked Bar Chart Example in Jasper Design Studio

This is a quick re-visit of JFree Stacked Bar chart in Jasper.

Query Format :
select * from
(
(
SELECT
'Store Sales' as Sales,
date(t.the_date) as date,
SUM(sf7.Store_sales) as SalesFact
FROM sales_fact_1997 sf7  JOIN time_by_day t
ON sf7.time_id=t.time_id GROUP BY Sales,the_date ORDER BY date
limit 25
)

UNION
(
SELECT
'Unit Sales' as Sales,
date(t.the_date) as date,
SUM(sf7.unit_sales) as SalesFact
FROM sales_fact_1997 sf7  JOIN time_by_day t
ON sf7.time_id=t.time_id GROUP BY Sales,the_date ORDER BY date
limit 25
)
) a ORDER BY a.date

Query Output:
Sales          date          salesfact

"Unit Sales";"2012-01-01";348.0000
"Store Sales";"2012-01-01";706.3400
"Unit Sales";"2012-01-02";635.0000
"Store Sales";"2012-01-02";1304.5300
"Store Sales";"2012-01-03";1294.1200
"Unit Sales";"2012-01-03";589.0000
"Unit Sales";"2012-01-04";20.0000
"Store Sales";"2012-01-04";42.8700
"Store Sales";"2012-01-05";1987.1900
"Unit Sales";"2012-01-05";966.0000

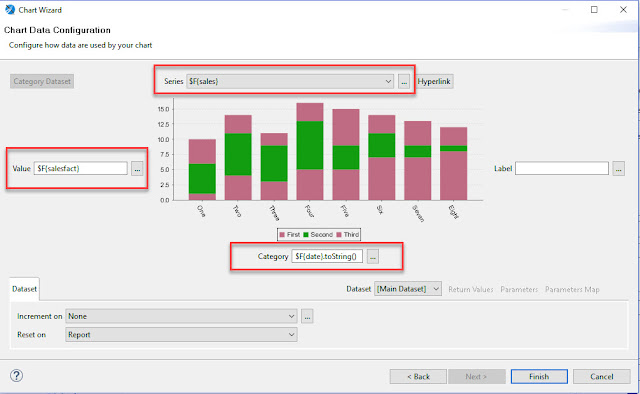

Chart Design :

Final Output:

JRXML Code :

Jasper Design Studio Version : Professional 6.3 (If you are using CE studio code may not work)

<?xml version="1.0" encoding="UTF-8"?>

<!-- Created with Jaspersoft Studio version 6.3.0.final using JasperReports Library version 6.3.0  -->

<!-- 2017-03-30T02:48:52 -->

<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports http://jasperreports.sourceforge.net/xsd/jasperreport.xsd" name="BarChartCustomization_XAxisLabels" pageWidth="800" pageHeight="842" columnWidth="760" leftMargin="20" rightMargin="20" topMargin="20" bottomMargin="20" uuid="9e71469d-a266-48ee-9989-9c4913b1190f">

<property name="com.jaspersoft.studio.data.defaultdataadapter" value="foodmart"/>

<property name="com.jaspersoft.studio.data.sql.tables" value=""/>

<property name="com.jaspersoft.studio.unit." value="pixel"/>

<queryString>

<![CDATA[select * from

(

(

SELECT

'Store Sales' as Sales,

date(t.the_date) as date,

SUM(sf7.Store_sales) as SalesFact

FROM sales_fact_1997 sf7  JOIN time_by_day t

ON sf7.time_id=t.time_id GROUP BY Sales,the_date ORDER BY date

limit 5

)

UNION

(

SELECT

'Unit Sales' as Sales,

date(t.the_date) as date,

SUM(sf7.unit_sales) as SalesFact

FROM sales_fact_1997 sf7  JOIN time_by_day t

ON sf7.time_id=t.time_id GROUP BY Sales,the_date ORDER BY date

limit 5

)

) a ORDER BY a.date]]>

</queryString>

<field name="sales" class="java.lang.String"/>

<field name="date" class="java.sql.Date"/>

<field name="salesfact" class="java.math.BigDecimal"/>

<background>

<band splitType="Stretch"/>

</background>

<summary>

<band height="360" splitType="Stretch">

<stackedBarChart>

<chart evaluationTime="Report">

<reportElement x="0" y="0" width="760" height="360" uuid="f13a44b1-bb8f-49b9-8bd8-4b048ef7e26d"/>

<chartTitle/>

<chartSubtitle/>

<chartLegend/>

</chart>

<categoryDataset>

<categorySeries>

<seriesExpression><![CDATA[$F{sales}]]></seriesExpression>

<categoryExpression><![CDATA[$F{date}.toString()]]></categoryExpression>

<valueExpression><![CDATA[$F{salesfact}]]></valueExpression>

</categorySeries>

</categoryDataset>

<barPlot>

<plot labelRotation="60.0">

<seriesColor seriesOrder="0" color="#BF6B83"/>

<seriesColor seriesOrder="1" color="#129D10"/>

</plot>

<itemLabel/>

<categoryAxisFormat labelRotation="60.0">

<axisFormat/>

</categoryAxisFormat>

<valueAxisFormat>

<axisFormat/>

</valueAxisFormat>

</barPlot>

</stackedBarChart>

</band>

</summary>

</jasperReport>
